The Cartoni P20 HP is a lightweight, portable camera pedestal designed for PTZ setups, compact studios, and mobile broadcast environments. Supporting payloads up to 25 kg (55 lbs), it delivers smooth on-shot movement, precise height adjustment, and reliable stability in a compact footprint.

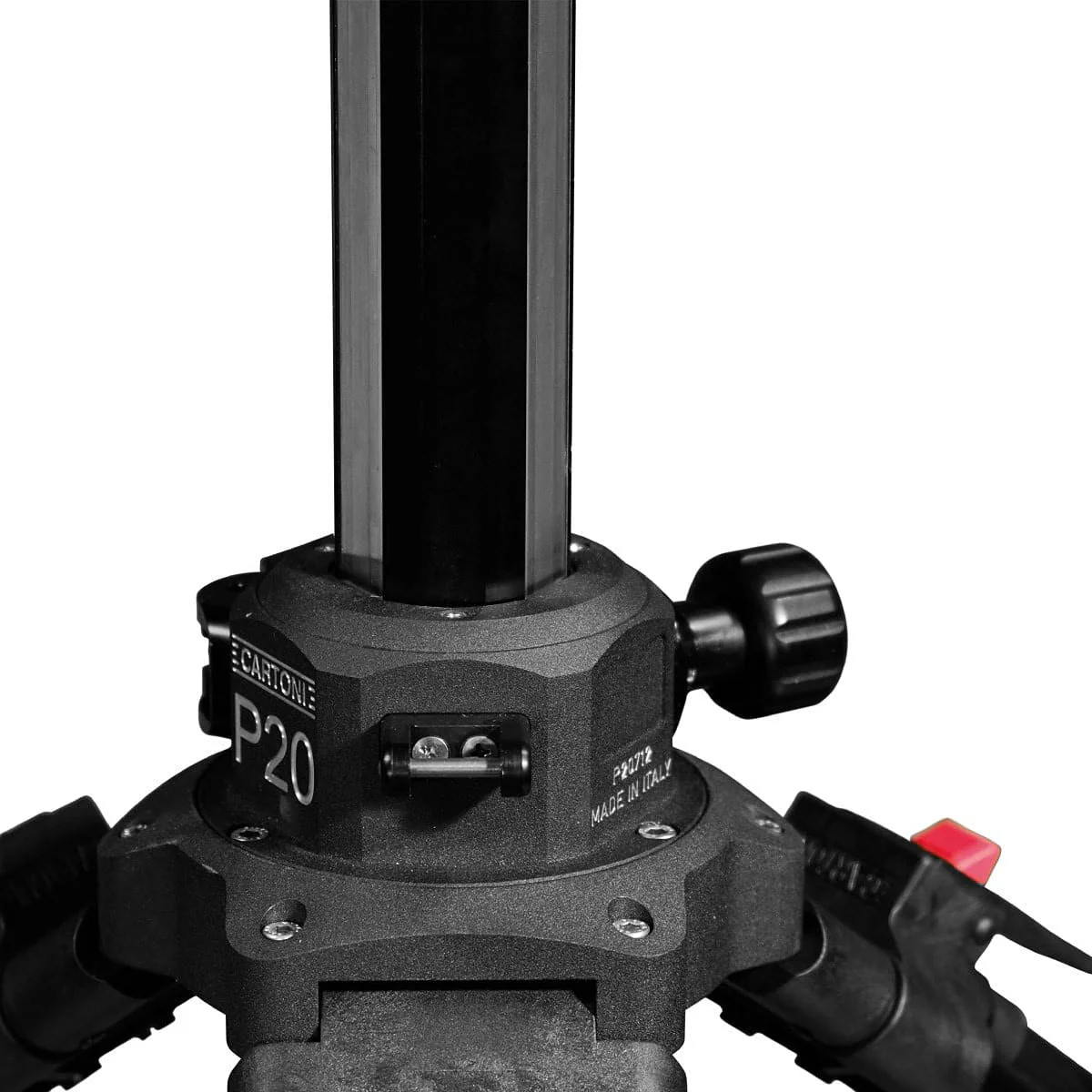

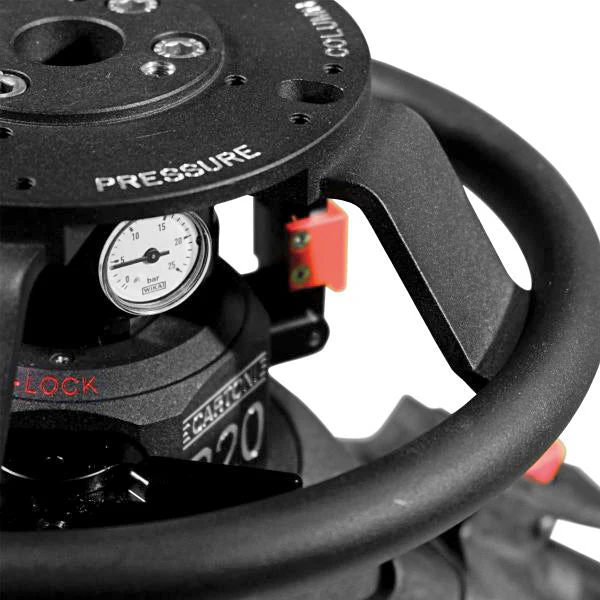

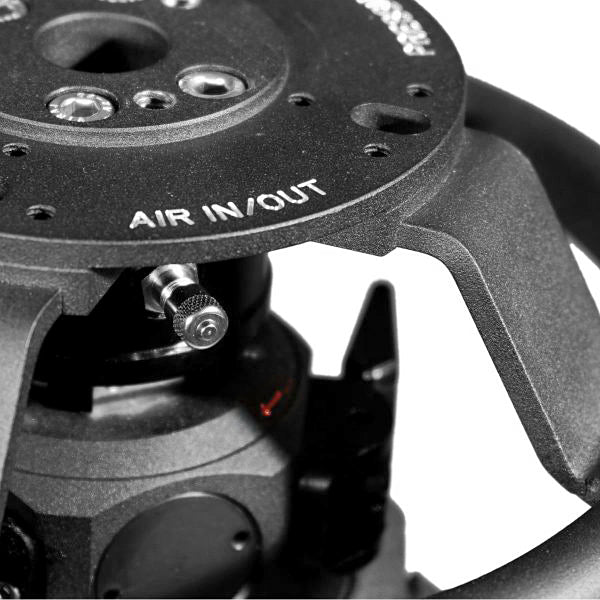

The dual-stage pneumatic column features a 40 cm vertical stroke, adjustable internal pressure, and a hexagonal design for enhanced tracking precision. Equipped with a manual air pump, pressure gauge, locking brake, and safety valve, it offers total control for consistent performance.

The foldable dolly base includes 100mm wheels with foot brakes, six directional lock positions, and adjustable arms for maneuvering in tight spaces or mounting on 620 mm track systems. With a 4-bolt head mount and optional 100mm bowl adapter (AH869), the P20 HP is fully adaptable to your rig.

Key Features:

• Payload support: up to 25 kg (55 lbs)

• Dual-stage pneumatic column with 40 cm vertical stroke

• Adjustable internal pressure with manual pump included

• Compact, foldable dolly with 100mm wheels & foot brakes

• 6-directional wheel locks & optional track/skating wheel compatibility

• 4-bolt mount with optional 100mm bowl adapter (AH869)

• Ideal for PTZ cameras, lightweight studio heads & mobile use
