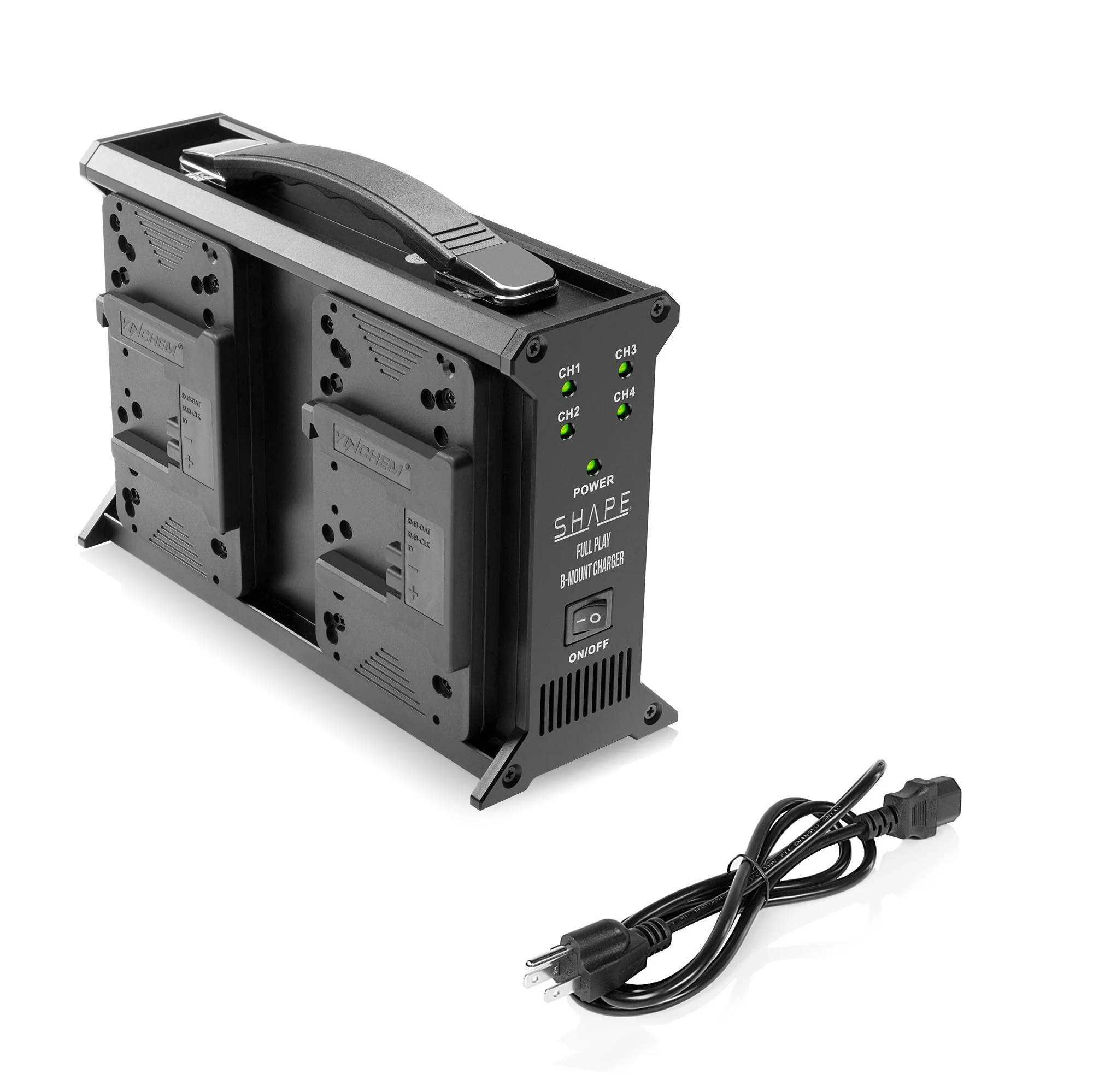

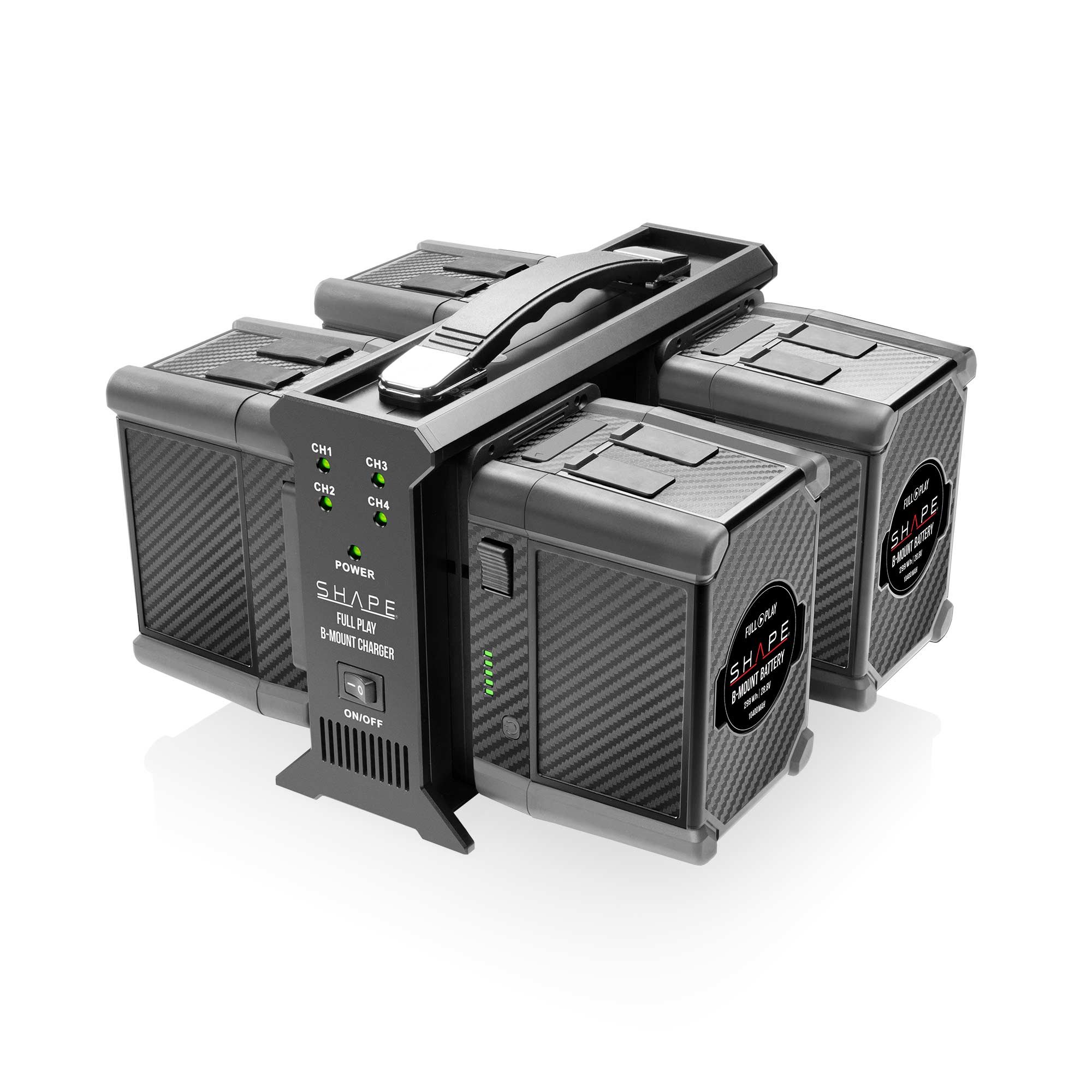

The SHAPE FULL PLAY Intelligent 4-Bay B-Mount Battery Charger can charge up to four B-Mount batteries simultaneously. LEDs indicate charging status for each bay. The compact vertical design is easy to transport using the top handle and the internal power supply can handle worldwide AC voltages. It is recommended to use only SHAPE batteries on B-mount charger, as a full set. We do not recommend mixing different brands at the same time.

· Simultaneous Quad B-Mount Lithium-Ion Battery Charger

· Charging input: DC 33.6V, 3A (400W Max).

· 3A per channel.

· Lightweight Portable Design

· Integrated Carry Handle

· Light Indicators for Battery Charge Status

· Charge/DC Out/Off Mode Switch

· 100-240V, 50-60Hz.

· Working Temperature: -10°C – 40°C.

· Weight: 6.26 lbs / 2.8 kg.

CHARGING INSTRUCTIONS

· Plug the power cable into the charger.

· Slide the battery that requires charging onto the charger. The battery is fully engaged when the latch makes an audible “click” sound.

· Turn on the charging switch on the charger and the indicator light will turn red. The charger will begin charging the battery automatically.

When the indicator light turns green, the charging is completely finished.

· Remove the battery by depressing the latch on the battery and sliding the battery off the charger. Turn off the charger.
